Textile chemicals and equipment

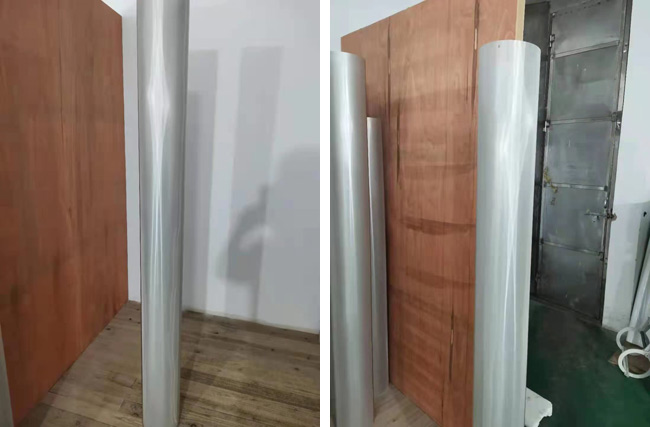

Rotary Printing Screen
Our rotary screens have covered 25mesh, 30mesh,40mesh,50mesh, 60mesh, 70mesh, 80 mesh, 100mesh,125mesh ,135mesh, 165mesh the repeat is from 640mm to 1680mm, the length is from 1410mm to 3500mm, the products are exported to more than 40 countries and regions such asTurkey, Brazil, Indonesia, India, Pakistan, etc.
Standard of Screen:
| Repeat(mm) | 530/640/688/725/819/914/1018 | ||
|---|---|---|---|
| Length(mm) | 1410-3500 | ||
| Mesh | Thickness (μm) | Open area (%) | Diameter (μm) |
| 25 | 160–165 | 30–32 | 720 |
| 40 | 145–150 | 28–30 | 318 |
| 60 | 115–120 | 18–20 | 161 |
| 70 | 110–115 | 16–18 | 131 |
| 80 | 110–115 | 16–18 | 105 |
| 100 | 105–115 | 15–17 | 74 |
| 105 | 105–115 | 15–17 | 94 |
| 125 | 100–105 | 14–16 | 79 |
| 125V | 100–105 | 14–16 | 79 |
| 135 | 100–105 | 13–15 | 72 |
| 135V | 100–105 | 13–15 | 72 |
| 155 | 100–105 | 12–13 | 60 |
| 165 | 100–105 | 12–13 | 71 |
